HTML report

*The interpretation of the HTML report is only available in EN.

SAW count and SAW realign pipelines will output an interactive report <SN>.report.tar.gz that contains report.html. The contents of the HTML report file will vary depending on the pipeline and parameters used but generally follow a similar format across runs.

On this page, we demonstrate the reports of FFPE tissue samples (a mouse brain and a mouse lung) running with SAW count (v8.0).

Summary

The spatial gene expression distribution plot, on the left, shows MID count at each bin200.

Total Reads is the amount of total sequencing reads of input FASTQs. Mean MID per Bin200 and Mean Gene per Bin200 represent the mean MID and gene type counts at each bin200. Unique Reads is the number of reads in the transcriptome that have been corrected by MAPQ and deduplicated.

Key metrics

Key metrics of the data are listed:

Metric	Description
Total Reads	Total number of sequenced reads.
Valid CID Reads	Number of reads with CIDs that can be matched with the mask file.
Invalid CID Reads	Number of reads with CIDs that cannot be matched with the mask file.
Clean Reads	Number of Valid CID Reads that have passed QC.
Non-Relevant Short Reads	Number of non-relevant short reads.
Discarded MID Reads	Number of reads with MID that have been discarded since MID sequence quality does not satisfy with further analysis.
Uniquely Mapped Reads	Number of reads that mapped uniquely to the reference genome. If the pipeline uses uniquely mapped reads and the best match from multi-mapped reads for subsequent annotation, this item will include them both.
Transcriptome	Number of reads that are aligned to transcripts of at least one gene.
Unique Reads	Number of reads in Transcriptome that have been corrected by MAPQ and deduplicated.
Sequencing Saturation	Number of reads in Transcriptome that have been corrected by MAPQ with duplicated MID.
Unannotated Reads	Number of reads that cannot be aligned to the transcript of one gene.
Multi-Mapped Reads	Number of reads that mapped more than one time on the genome. If the pipeline uses uniquely mapped reads and the best match from multi-mapped reads for subsequenty annotation, this item will exclude multi-mapped ones to be annotated.
Unmapped Reads	Number of reads that cannot be mapped to the reference genome.
rRNA Reads	Number of reads that mapped to the rRNA regions.

Annotation

Metrics of reads to be annotated by GTF/GFF files.

Metric	Description
Transcriptome	Number of reads that mapped to a unique gene in the transcriptome. These reads are considered for MID counting. (Transcriptome = Exonic + Intronic)
Exonic	Number of reads that mapped uniquely to an exonic region and on the same strand of the genome.
Intronic	Number of reads that mapped uniquely to an intronic region and on the same strand of the genome.
Intergenic	Number of reads that mapped uniquely to an intergenic region and on the same strand of the genome.
Antisense	Number of reads mapped to the transcriptome but on the opposite strand of their annotated gene.

Information

This item displays the basic information of the input FASTQs,

Organism is from the --organism parameter used in SAW count, usually referring to the species.

Tissue is from the --tissue parameter used in SAW count.

Reference means the reference genome used in SAW count, as the same as Organism.

FASTQ records FASTQ files in SAW count, including file prefixes of all input sequencing FASTQs.

Display and metrics related to tissue-coverage region

The tissue segmentation result based on a microscope image is shown on the left, of which the tissue region is covered in purple.

Metrics related to tissue coverage are listed:

Metric	Description
Tissue Area	Tissue area in nm².
DNB Under Tissue	Number of DNBs under tissue coverage region.
mRNA-Captured DNBs Under Tissue	Number of DNBs under tissue that have captured mRNA.
Genes Under Tissue	Number of detected gene under tissue coverage.
Number of MID Under Tissue Coverage	Number of MID under tissue coverage.
Fraction MID in Spots Under Tissue	Fraction of MID under tissue over total unique reads. (MID Under Tissue / Unique Reads)
Reads Under Tissue	Number of reads with position prior to filtration under tissue coverage.
Fraction Reads in Spots Under Tissue	Fraction of mapped reads under tissue over total mapped reads. (Mapped Reads in Spots Under Tissue / Valid CID Reads)

Sequencing saturation

The saturation analysis in the HTML report can assess the overall quality of the sequencing data. In order to improve calculation efficiency, small samples are randomly selected from successfully annotated reads in the bin200 dimension. Therefore, the results of multiple runs of the same data may vary slightly. The formulas may not be identical, but the general shape of the curve is consistent.

Figure 1: Statistics of Unique Reads (reads with unique CID, geneName and MID) in the sampled samples, saturation value = 1-(Unique Reads)/(Total Annotated Reads), as the sampling volume increases, the fitting curve becomes near-flat, indicating that the data tends to be saturated. Whether to add additional tests depends on the overall project design and sample conditions. For example, it is recommended that additional tests be performed on precious samples. The threshold value of 0.8 in the report serves as a reminder for recommended guidance.
Figure 2: As the number of random samples increases, the gene median in the bin200 dimension gradually increases.
Figure 3: Curves fitted based on Unique Reads data from randomly sampled samples, with a fitting curve R² ≥ 0.9.

The x-axis of the three graphs is the same, and the y-axis is divided into saturation value, gene median, and number of Unique Reads.

Square Bin

This page contains results of statistics, plots, clustering, UMAP, and differential expression analysis, at bin dimension. Results come from the analysis based on <SN>.tissue.gef file.

Statistics

The above table records the statistics from bin 1 to bin 200:

Item	Description
Bin Size	The size of Bin which is the unit of aggregated DNBs in a squared region. i.e. Bin 50 = 50 * 50 DNBs
Mean Reads (per bin)	Mean number of sequenced reads divided by the number of bins under tissue coverage.
Median Reads (per bin)	Median number of sequenced reads divided by the number of bins under tissue coverage (pick the middle value after sorting).
Mean Gene Type (per bin)	Mean number of unique gene types divided by the number of bins under tissue coverage.
Median Gene Type (per bin)	Median number of unique gene types divided by the number of bins under tissue coverage.
Mean MID (per bin)	Mean number of MIDs divided by the number of bins under tissue coverage.
Median MID (per bin)	Median number of MIDs divided by the number of bins under tissue coverage

Plots

In the upper left corner,there is a a scatter plot of MID count and gene types in each bin.

In the upper right corner, violin plots show the distribution of deduplicated MID count and gene types in each bin.

On the bottom, univariate distribution of MID count, gene types, and DNB numbers is shown with rug along the x-axis.

Clustering & UMAP

Clustering is performed based on SN.tissue.gef using the Leiden algorithm. UMAP projections are performed based on SN.tissue.gef and colored by automated clustering. The same color is assigned to spots that are within a shorter distance and with similar gene expression profiles.

Differential expression analysis

The goal of the differential expression analysis is to identify markers that are more highly expressed in a cluster than the rest of the sample. For each marker, a differential expression test was run between each cluster and the remaining sample. An estimate of the log2 ratio of expression in a cluster to that in other coordinates is Log2 fold-change (L2FC). A value of 1.0 denotes a 2-fold increase in expression within the relevant cluster. Based on a negative binomial test, the p-value indicates the expression difference's statistical significance. The Benjamini-Hochberg method has been used to correct the p-value for multiple testing. Additionally, the top N features by L2FC for each cluster were kept after features in this table were filtered by (Mean UMI counts > 1.0). Grayed-out features have an adjusted p-value >= 0.10 or an L2FC < 0. N (ranges from 1 to 50) is the number of top features displayed per cluster, which is set to limit the amount of table entries displayed to 10,000. N=%10,000/K^2 where K is the number of clusters. Click on a column to sort by that value, or search a gene of interest.

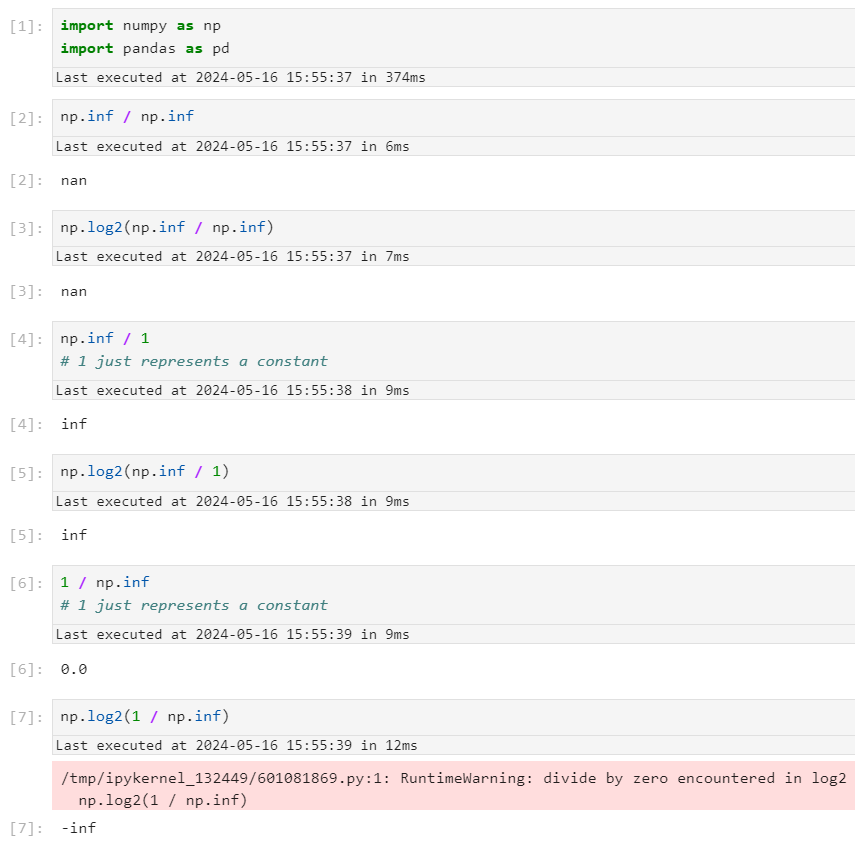

When the values of L2FC in the marker feature table are blank, "infinity" and "-infinity", the analysis results are normal. These conditions are well explained below.

The calculation of L2FC is related to the expression number of cells of a certain gene in the case group and the control group. Since the calculation of L2FC uses the natural logarithm as the base, when the expression relationship has extremely high or low values, the three special values, none, "inf" and "-inf", will appear. The screenshot below uses inf and a constant to make a simple demonstration.

The p-values should be increasing as the list descends (with a maximum of 1), infinitely close to 0.

If you find that the p-value is 0 in the result table, it may be because the calculated differential expression feature is extremely significant, leading to an extremely small p-value. This can exceed the limit of the data type (usually float64, depending on the basic computing package), resulting in a situation that cannot be expressed in scientific notation.

Cell Bin

This page contains results of statistics, plots, clustering, UMAP, and differential expression analysis, at cellbin dimension. Cell border expanding is automatically performed during SAW count and SAW realign, which means the contents of "Cell Bin" tab are based on SN.adjusted.cellbin.gef.

When it comes to --adjusted-distance=0 in SAW realign, all contents of this tab are based on SN.cellbin.gef.

Statistics

The above table records the statistics of cellbin:

Item	Description
Cell Count	Number of cells.
Mean Cell Area	Mean cell area, in pixes.
Median Cell Area	Median cell area, in pixes.
Mean DNB Count	Mean number of DNBs that have captured-mRNAs per cell.
Median DNB Count	Median number of DNBs that have captured-mRNAs per cell.
Mean Gene Type	Mean gene types per cell.
Median Gene Type	Median gene types per cell.
Mean MID	Mean MID count per cell.
Median MID	Median MID count per cell.

Plots

In the upper left corner, there is a a scatter plot of MID count and gene types in the cellbin.

In the upper right corner, violin plots show the distribution of deduplicated MID count and gene types in the cellbin.

On the bottom, univariate distribution of MID count, gene types, and DNB numbers is shown with rug along the x-axis.

Clustering & UMAP

Clustering is performed based on SN.adjusted.cellbin.gef or SN.cellbin.gef, using the Leiden algorithm. UMAP projections are performed based on SN.adjusted.cellbin.gef or SN.cellbin.gef, and colored by automated clustering. The same color is assigned to spots that are within a shorter distance and with similar gene expression profiles.

Differential expression analysis

Interpretation for exceptional cases related to differential expression analysis can be found under Square Bin part.


Image information

Basic information about the microscopic staining image, usually involving microscope settings.

QC

Metric	Description
Image QC version	The version of image QC module.
QC Pass	Whether the image(s) passed image QC quality check.
Trackline Score	Reference score for trackline detection.
Clarity Score	Reference score for image clarity.
Good FOV Count	Number of FOVs that have at least one track dot detected.
Total FOV Count	Total number of FOVs.
Stitching Score	Reference score for stitching.
Tissue Segmentation Score	Reference score for tissue segmentation.
Registration Score	Reference score for auto-aligning image with gene expression matrix.

Stitching

Metric	Description
Template Source Row No.	The row number of the template FOV used for predicting the entire template.
Template Source Column No.	The column number of the template FOV used for predicting the entire template.
Global Height	Height of the stitched image.
Global Width	Width of the stitched image.

Registration

Metric	Description
ScaleX	The lateral scaling between image and template.
ScaleY	The longitudinal scaling between image and template.
Rotation	The rotation angle of the image relative to the template.
Flip	Whether the image is flipped horizontally.
Image X Offset	Offset between image and matrix in x direction.
Image Y Offset	Offset between image and matrix in y direction
Counter Clockwise Rotation	Counter clockwise rotation angle.
Manual ScaleX	The lateral scaling based on image center (manual-registration).
Manual ScaleY	The longitudinal scaling based on image center (manual-registration).
Manual Rotation	The rotation angle based on image center (manual-registration).
Matrix X Start	Gene expression matrix offset in x direction by DNB numbers.
Matrix Y Start	Gene expression matrix offset in y direction by DNB numbers.
Matrix Height	Gene expression matrix height.
Matrix Width	Gene expression matrix width.

Microorganism

Here is an another FFPE tissue sample of mouse lung which is especially for microorganism analysis.

The distribution plot of microorganism spatial expression, on the left, shows MID count at each bin200.

Denoising

Metric	Description
Total Reads	Total number of input reads.
Non-Host Source Reads	Number of reads that can not be aligned to the host genome.
Host Source Reads	Number of reads that can be aligned to the host genome during denoising.

Taxonomic Classification

Metric	Description
Non-Host Source Reads	Number of reads that can not be aligned to the host genome.
Bacteria, Fungi and Viruses MIDs	Number of unique mRNA molecular assigned to bacteria, fungi or viruses.
Bacteria, Fungi and Viruses Duplication	Number of assigned reads that have been corrected due to duplicated MID.
Other Microbes or Host-Suspicious	Number of reads assigned to other microbes (exclude bacteria, fungi and viruses) or host.
Unclassified Reads	Number of unclassified reads.

Microbes Proportion (Phylum)

The main proportion of microbes at the phylum level.

*the same for other classifications

Alerts

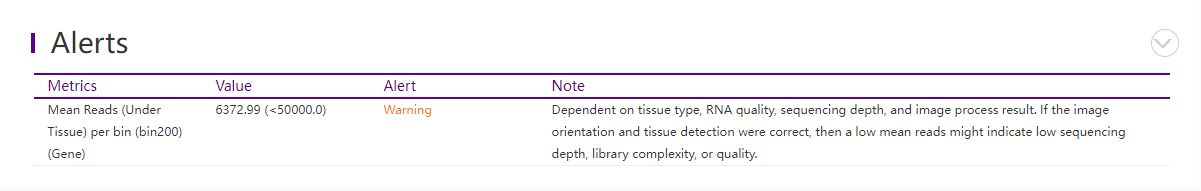

Thresholds are set for several important statistical indicators. If the analysis results are abnormal, an alert message will be displayed at the top of the HTML report.

Here is an abnormal exmple data just for display.
